CVE-2025-9145

Stored XSS via SVG Upload Bypass in Scada-LTS

🇧🇷 Ler em Português.

CVE-2025-9145

Introduction

What if simply uploading an SVG file could compromise a user’s browser? In this post, I’ll walk you through a stored XSS vulnerability I discovered in Scada-LTS that leverages a file upload bypass to inject and execute JavaScript.

This vulnerability was assigned CVE-2025-9145 after responsible disclosure and affects the backgroundImageMP parameter of the view_edit.shtm endpoint.

Below you’ll find the technical details, a step-by-step PoC, payloads, impact, and official references.

What is CVE-2025-9145?

CVE-2025-9145 is a Stored Cross-Site Scripting (XSS) vulnerability triggered through SVG file upload bypass. Unlike traditional input-based XSS, this flaw allows an attacker to upload a malicious SVG containing embedded JavaScript. When rendered by the browser, this script executes automatically, compromising any user who accesses the file.

This type of issue is especially dangerous because it persists on the server and doesn't require user interaction beyond simply visiting the file's URL.

Technical Details

➤ Vulnerable Endpoint view_edit.shtm

➤ Affected Parameter: backgroundImageMP

➤ Trigger Page: /uploads/[ID].svg

➤ Payload Used

html

<svg xmlns=""http://www.w3.org/2000/svg"" fill=""none"">
  <script>
    alert(""Este é um XSS-POC de CVE-HUNTERS"");
  </script>
</svg>

Proof of Concept (PoC)

Here’s how you can reproduce the vulnerability step by step:

➤ Save the payload as: xss.svg

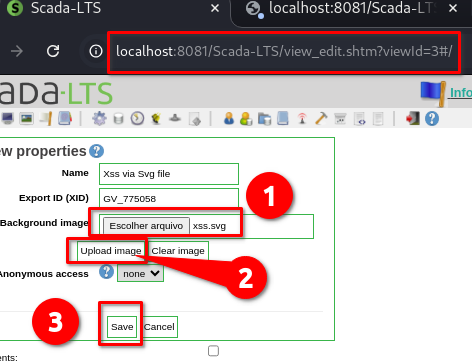

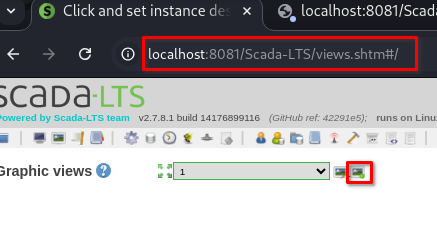

➤ Go to views.shtm

➤ Click the “computer +” icon to create a new view

➤ Click “Escolher arquivo” (Choose File) and select xss.svg. Then, click “Upload image”

➤ After the file uploads, click “Save”.

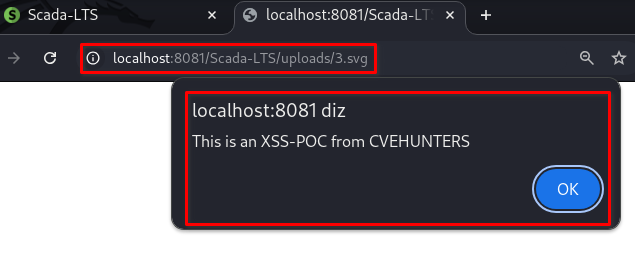

➤ Navigate to the uploaded file path /uploads/[ID].svg

The script will execute immediately.

Parameter backgroundImageMP

Impact

This Cross-Site Scripting (XSS) vulnerability can be exploited to:

• Steal session cookies (session hijacking);
• Install malware on victims’ devices;
• Steal credentials stored in the browser;
• Redirect users to malicious websites;
• Deface the application interface;
• Damage the institutional reputation.

Official Sources

The vulnerability was reported ethically and assigned as:

Conclusion

Bypassing file upload restrictions using SVG files is a well-known XSS vector, yet still often underestimated. CVE-2025-9145 demonstrates how a seemingly harmless image upload can turn into a persistent client-side threat.

Security teams should treat SVGs as active content, sanitize thoroughly, and avoid rendering user-uploaded files directly in the browser without filtering. Even one field — or file — is enough to compromise an application.

Credits

Discovered with💜 by Karina Gante.

Official Member of CVE-Hunters🏹
